Download CloudMonitor Analytics Engine

Step 1

Go to the Azure Marketplace to install the Analytics Engine. Note: you will need to sign in with your Microsoft work or school account: (Right-click on the link) Azure Marketplace — CloudMonitor Analytics Engine

Step 2

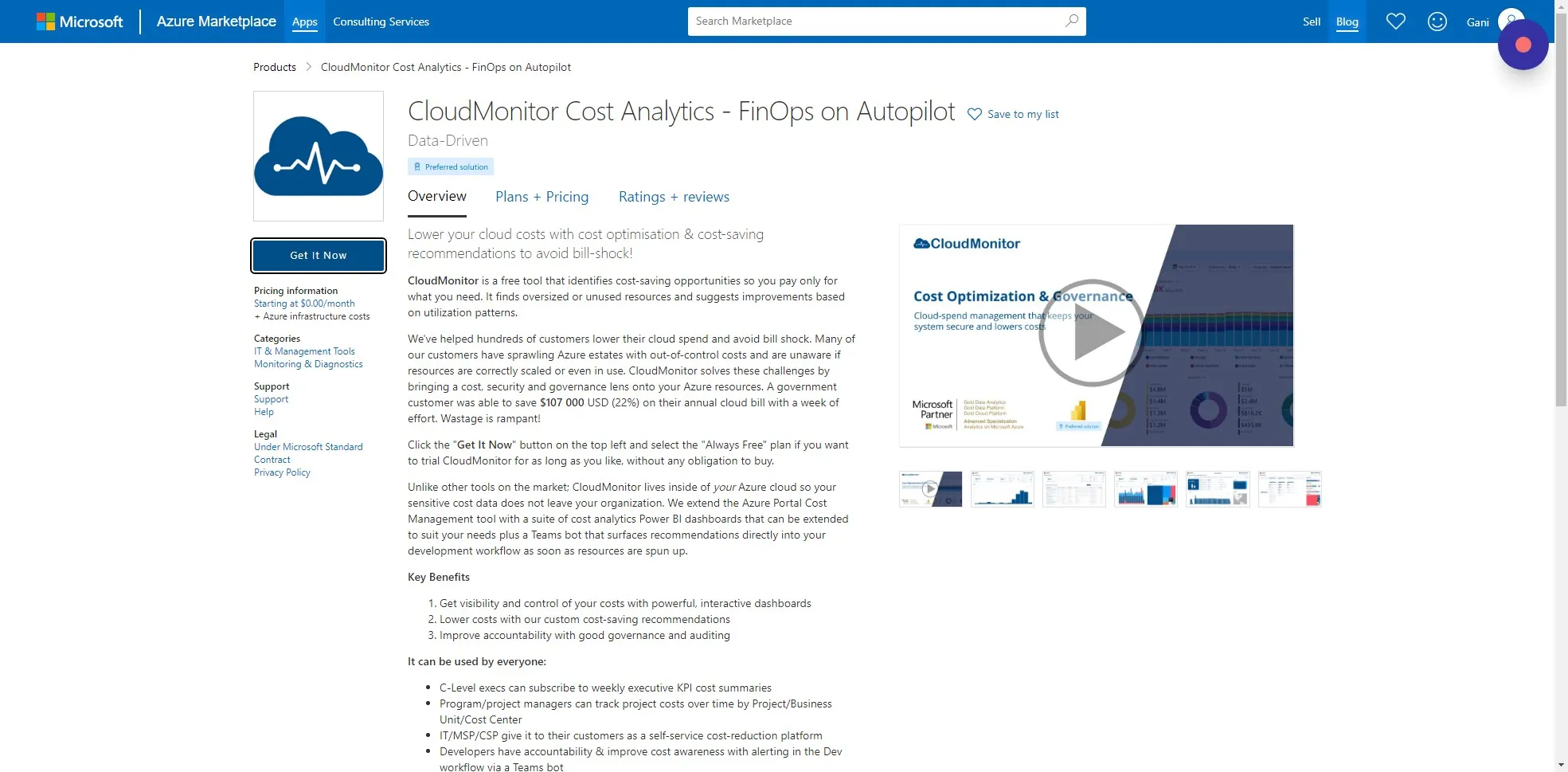

Click “Get It Now” and sign in if required.

Click "Get It Now" and sign in if required

Step 3

CloudMonitor offers pricing plans based on your cloud spend.

You can view our plans and pricing by checking out this link: cloudmonitor.ai/pricing

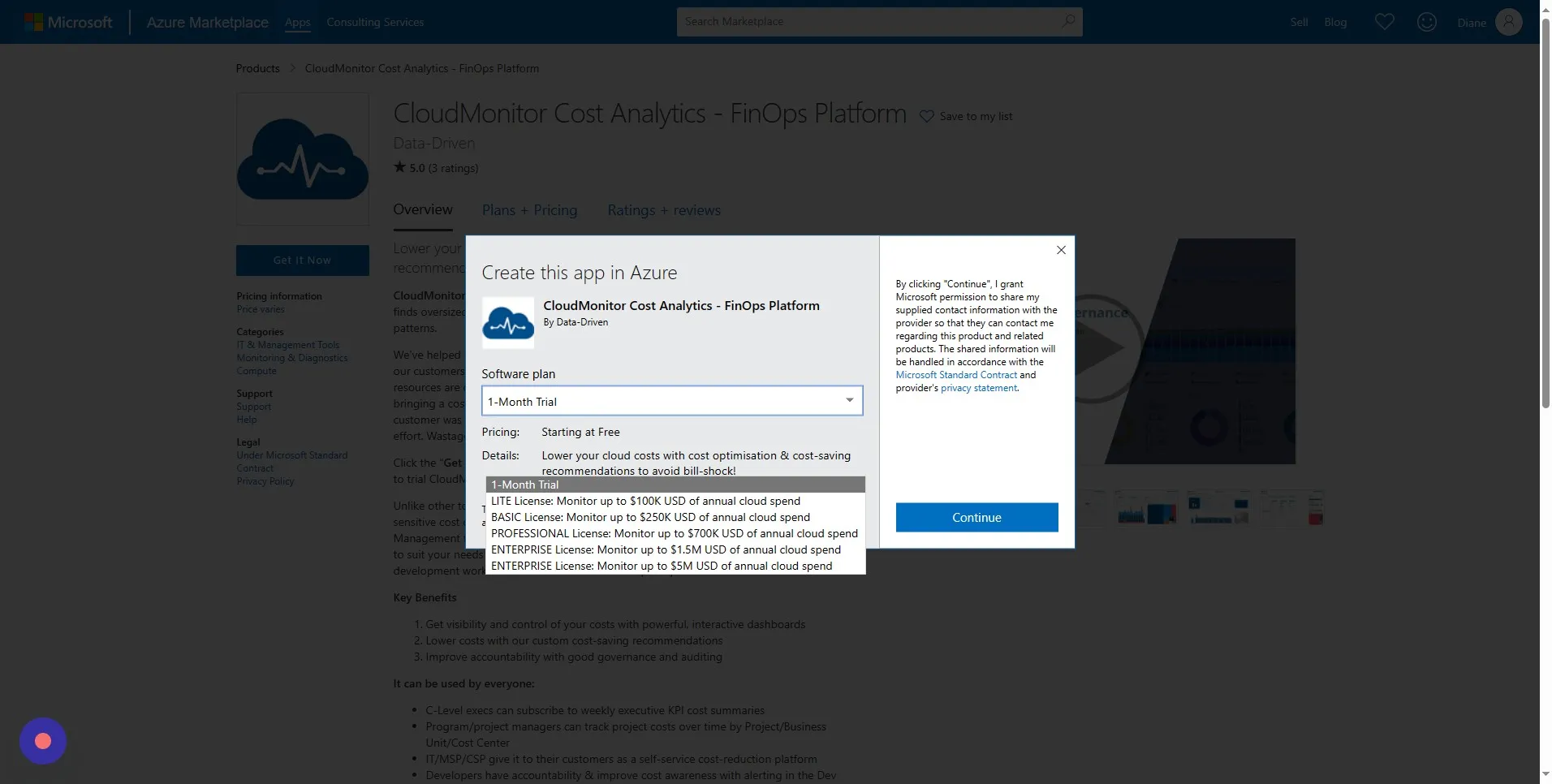

Select your plan from the dropdown menu and click Continue.

Select your plan from the dropdown menu and click Continue

Step 4

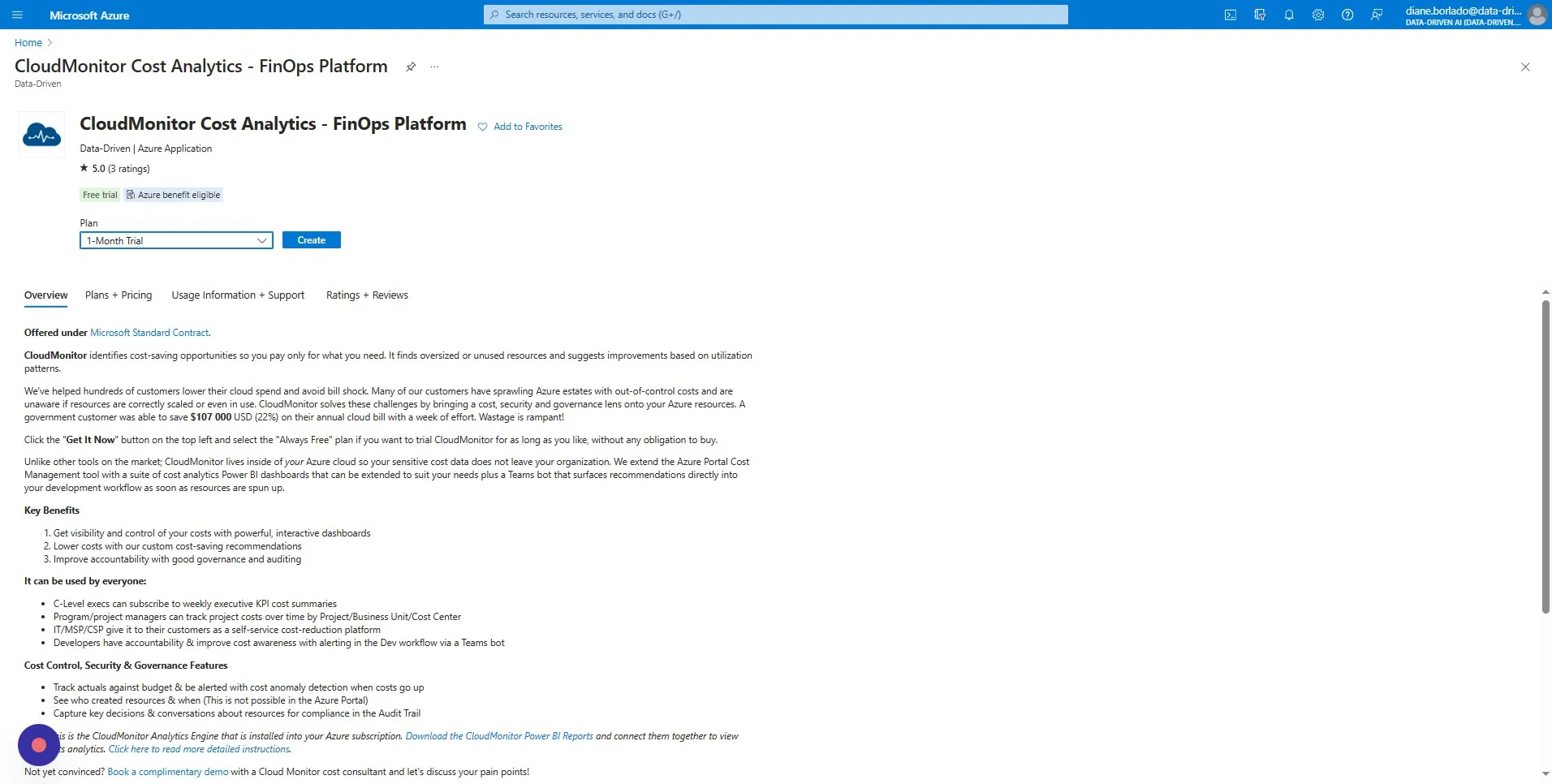

Select the same plan you selected before and click on “Create”. This will take you through a series of questions to personalise your installation.

Select the same plan you selected before and click on "Create"

Step 5

Choose an Azure Subscription in your environment where you would like to install CloudMonitor. This is NOT the Subscriptions that you want to monitor, just where you want to put the CloudMonitor Application.

For example, if you are evaluating it, you might install it on a DEV Subscription, whereas if you are monitoring production resources you might want to install it on a Production Subscription.

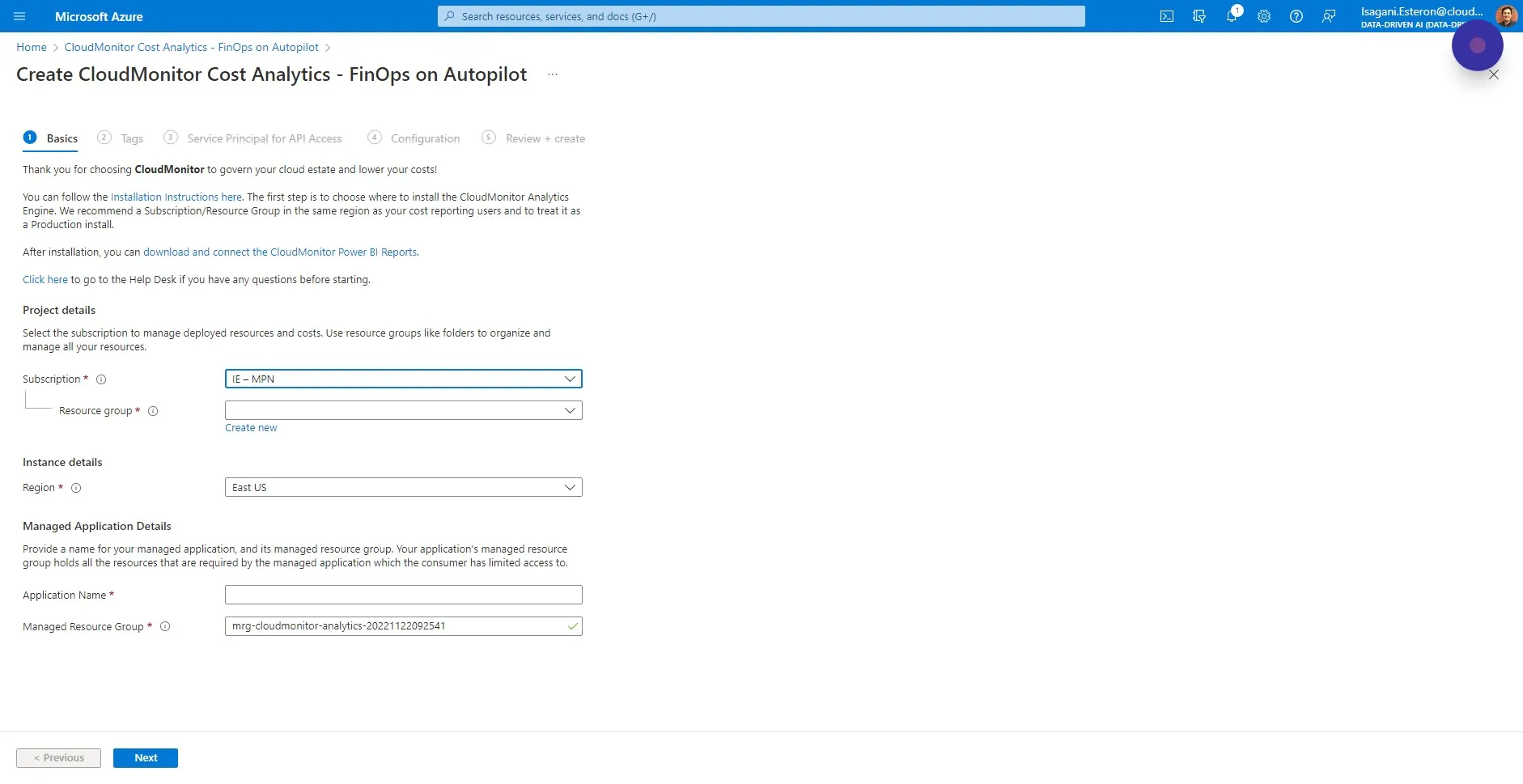

In our example below we are using a Subscription called “IE - MPN”.

In our example below we are using a Subscription called "IE - MPN"

Step 6

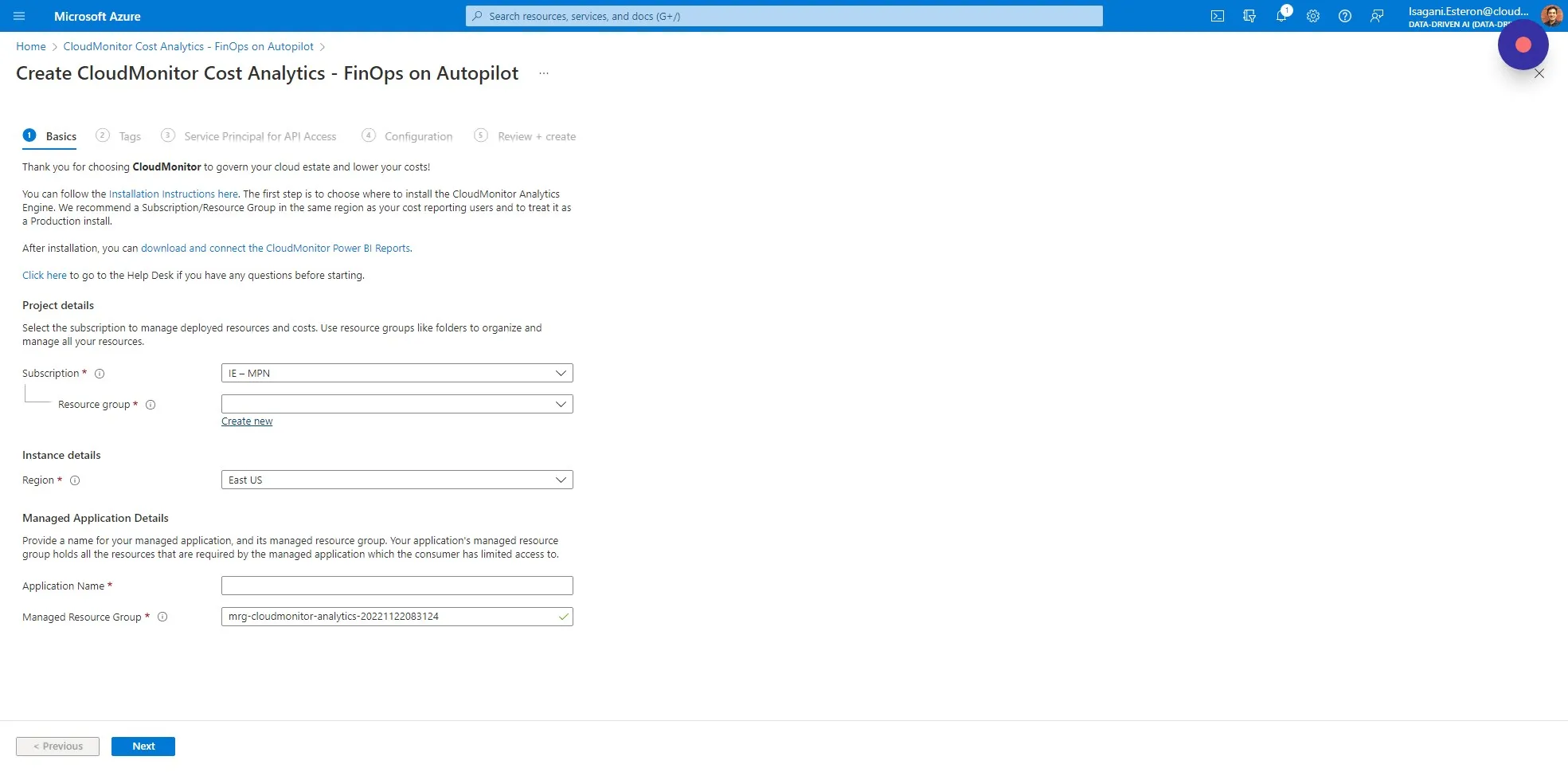

We recommend always creating a new Resource Group.

We recommend always creating a new Resource Group

Step 7

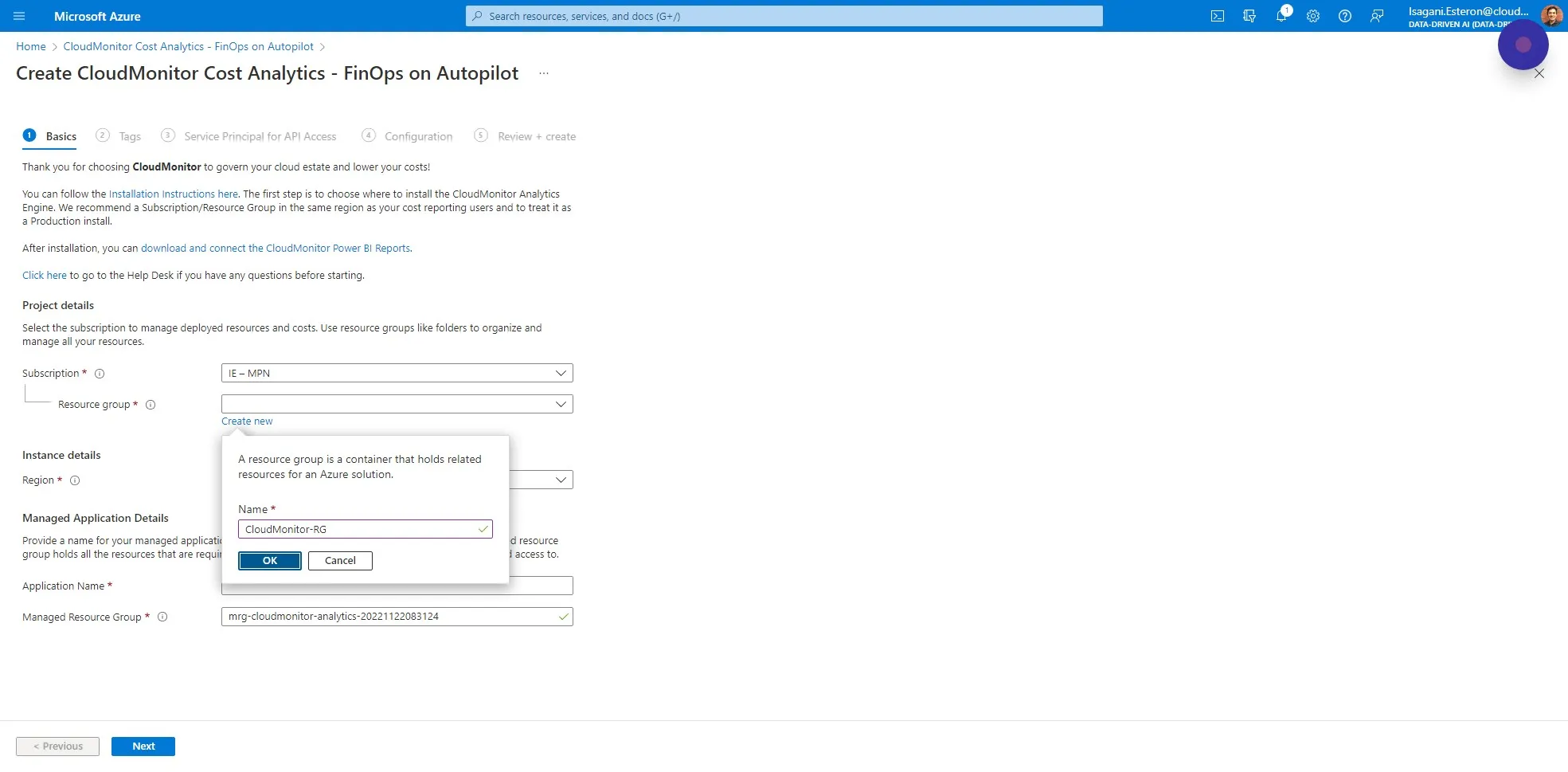

Enter “CloudMonitor” as the Resource Group name and click “OK” (We used “CloudMonitor-RG” in our example below).

Enter "CloudMonitor" as the Resource Group name and click "OK" (We used "CloudMonitor-RG" in our example below)

Step 8

Choose a Region where you want to install CloudMonitor. It makes sense to choose the region closest to your other Azure Subscriptions that you will be monitoring.

Choose a Region where you want to install CloudMonitor

Step 9

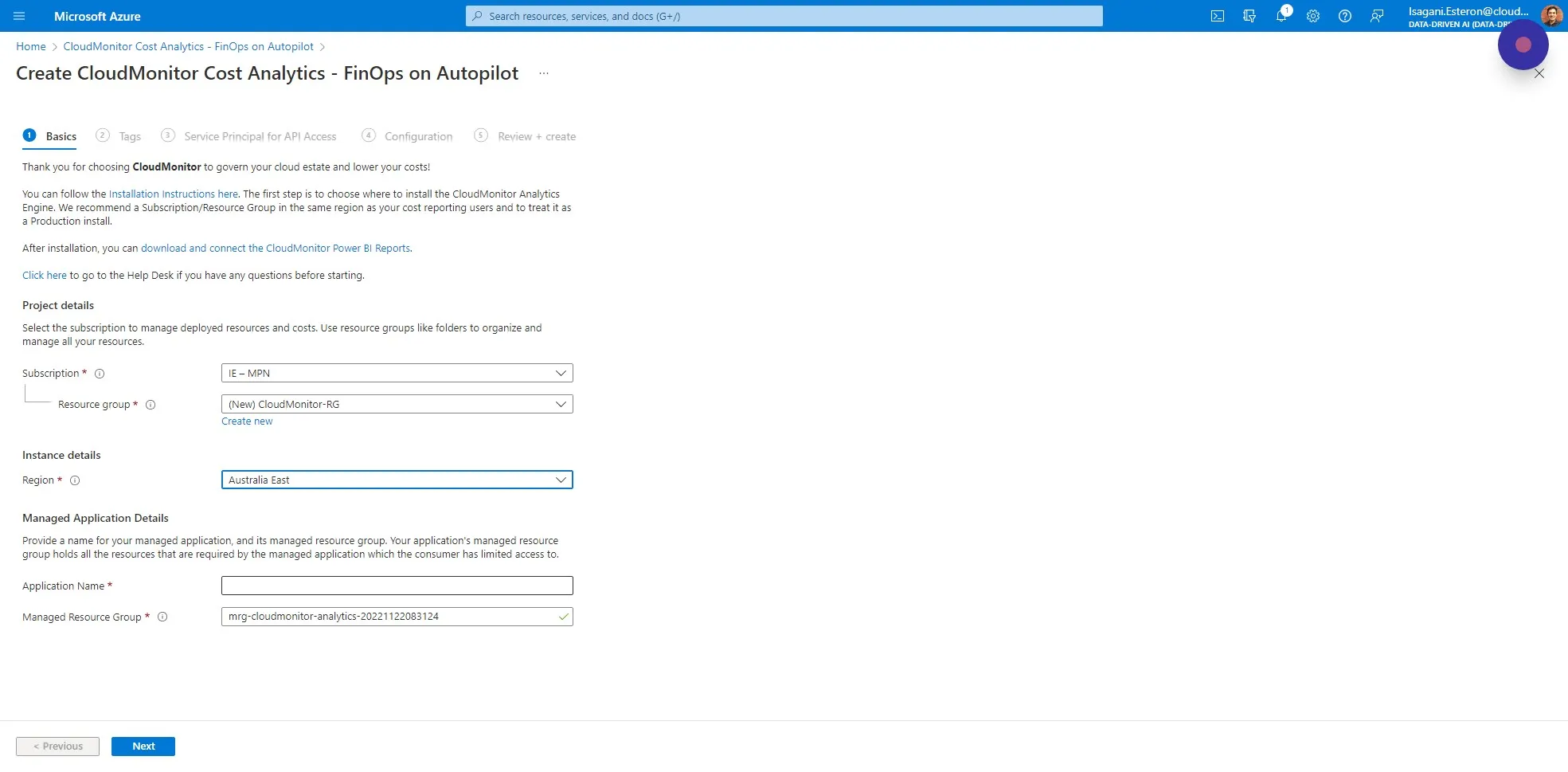

Fill in the Application Name as “CloudMonitor” or something similar and click on Next.

Fill in the Application Name as "CloudMonitor" or something similar and click on Next

Step 10

The next step is to create the Azure AD Service Principal that reads the cost metadata for the Azure Subscriptions that you want to monitor. You will need to have the permissions to create Service Principals in Active Directory, or you could ask your Admin to create it and provide you with the Client ID and Secret. We will assume you have the required permissions.

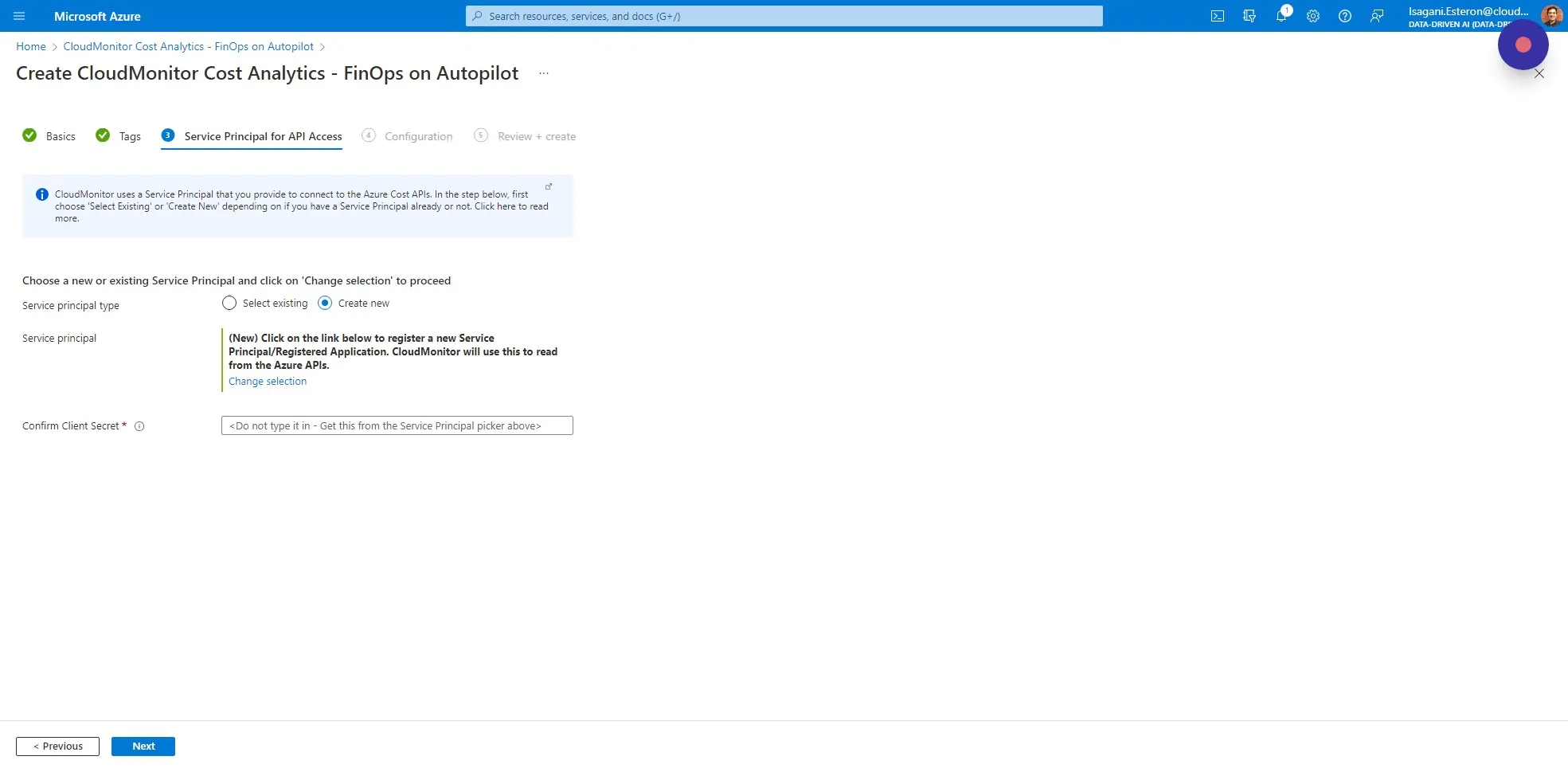

Choose “Create new” and click on Change Selection.

Choose "Create new" and click on Change Selection

Step 11

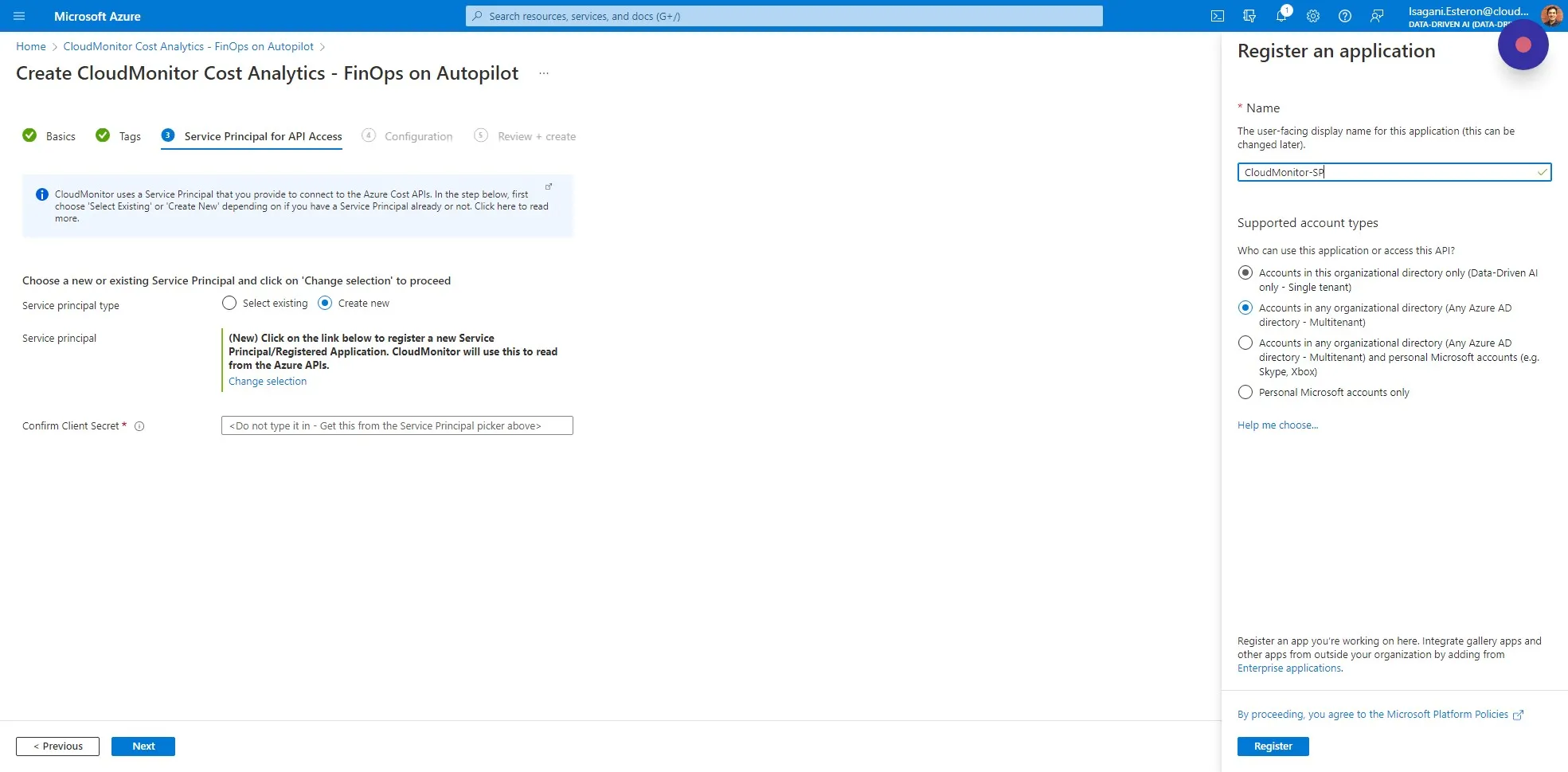

Enter a name like “CloudMonitor-SP” and make sure “Accounts in this organizational directory only” is selected, then click on Register.

Enter a name like "CloudMonitor-SP" and make sure "Accounts in this organizational directory only" is selected, then click on Register

Step 12

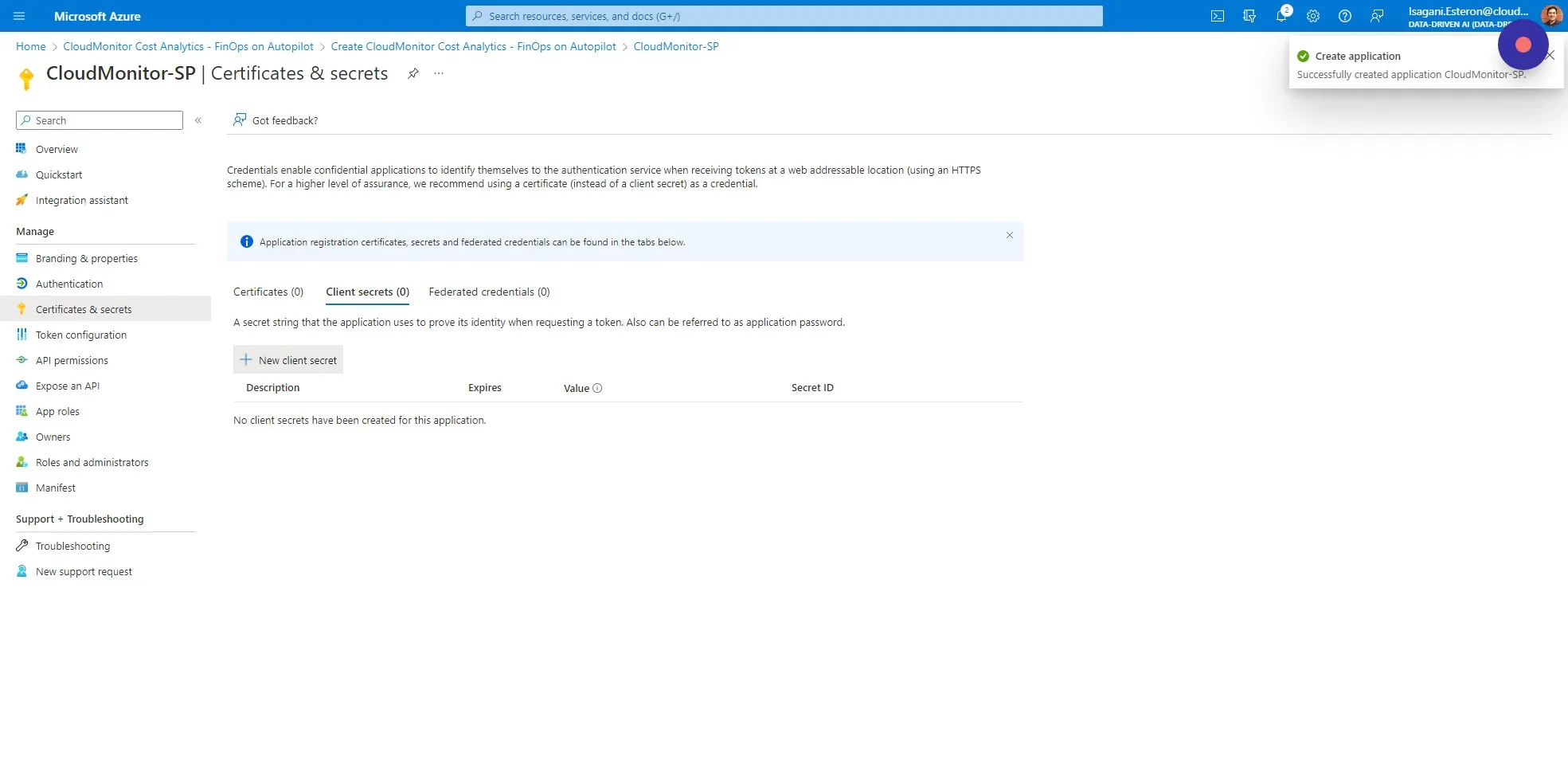

Go to the Certificates & Secrets tab in the left -hand menu and click “New client secret”.

Go to the Certificates & Secrets tab in the left -hand menu and click "New client secret"

Step 13

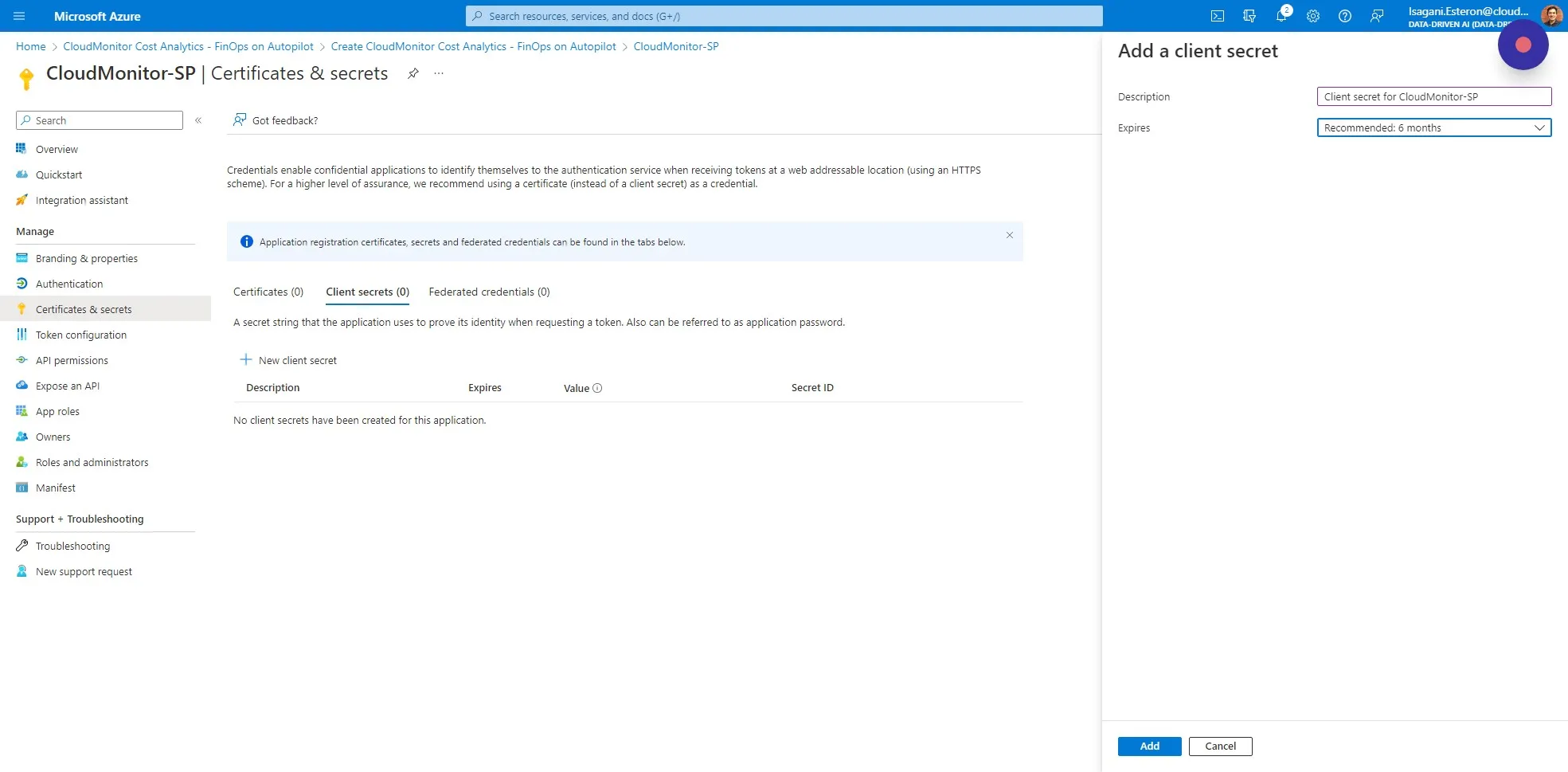

Fill in the “Description” field - we recommend something like “CloudMonitor Client Secret” and choose the amount of time that you want this secret to be valid for.

3 months is more secure but you will need to remember to change it when it expires or CloudMonitor will stop working. We recommend 12 months to avoid the effort of expiring secrets. Click on “Add” to proceed.

3 months is more secure but you will need to remember to change it when it expires or CloudMonitor will stop working

Step 14

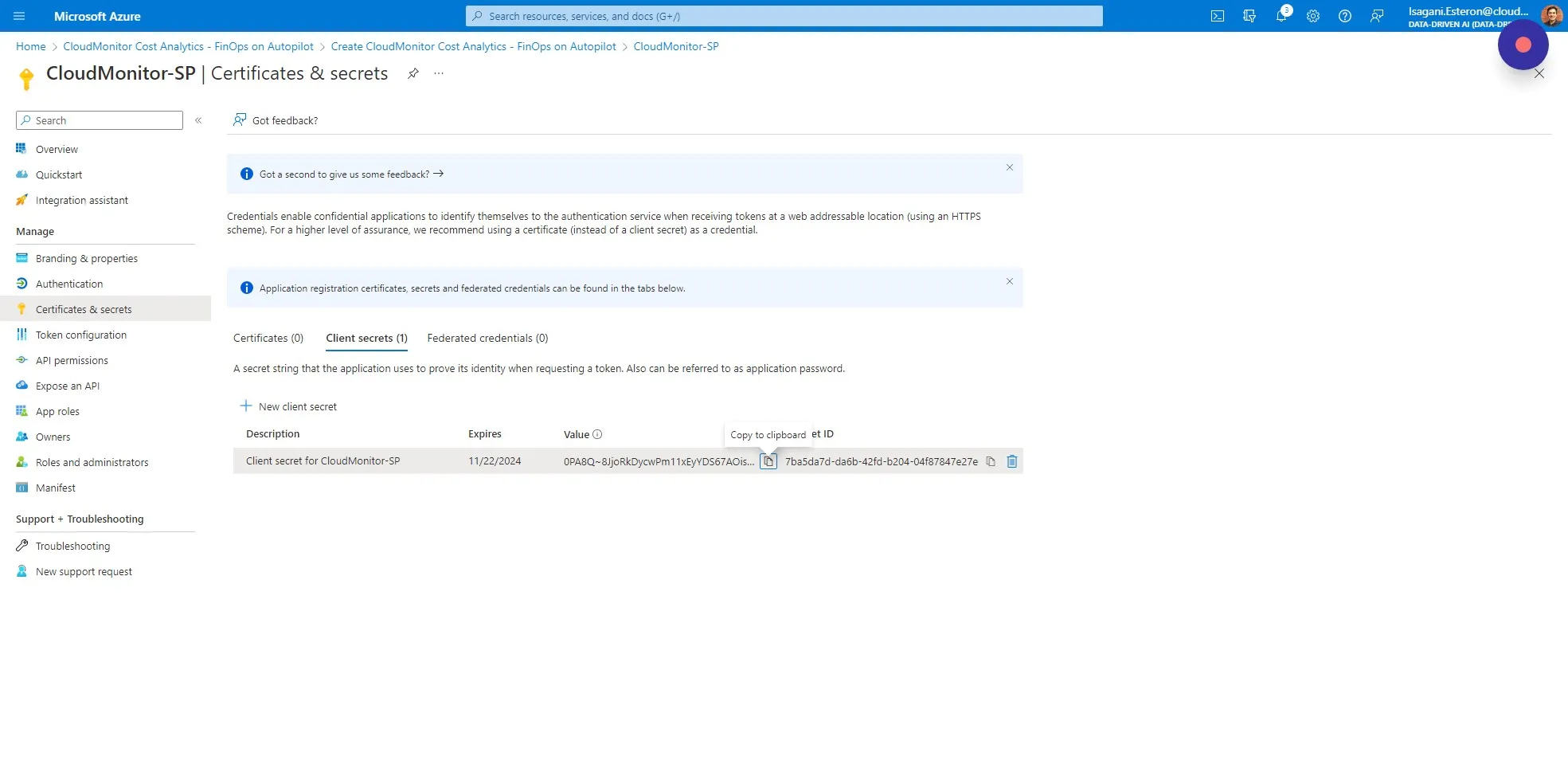

Click on the clipboard to copy the Secret Value and store it in a safe place, like a Password Vault. You will not be able to copy this value again once you close this window, and we need it for a later step.

Click on the clipboard to copy the Secret Value and store it in a safe place, like a Password Vault

Step 15

Click “Create CloudMonitor Cost Analytics - FinOps on Autopilot” to go back to the installation wizard.

Click "Create CloudMonitor Cost Analytics - FinOps on Autopilot" to go back to the installation wizard

Step 16

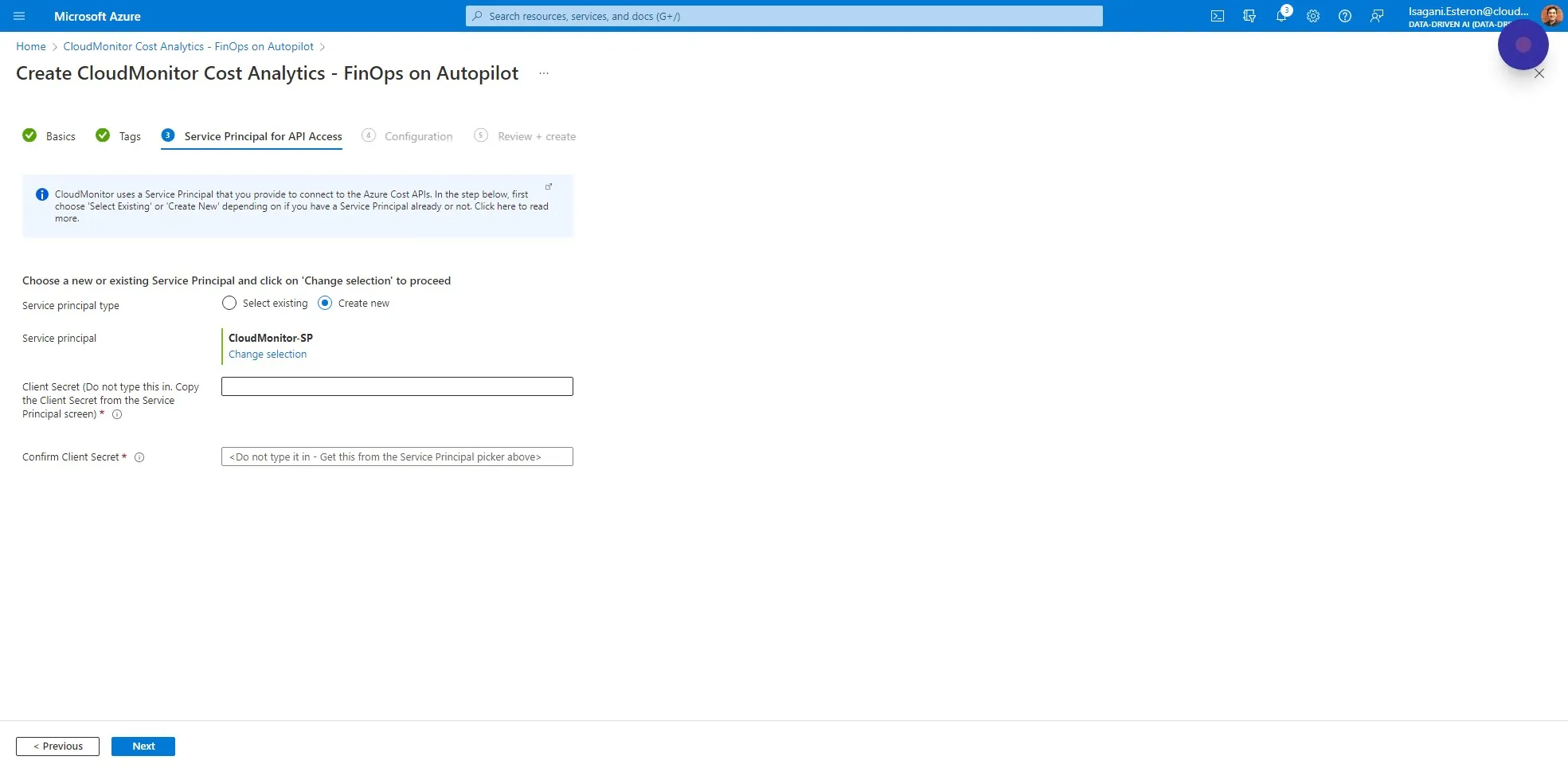

You will notice the Service Principal that you created is now selected. Paste in the Client Secret Value from the clipboard you created in the previous step.

You will notice the Service Principal that you created is now selected

Step 17

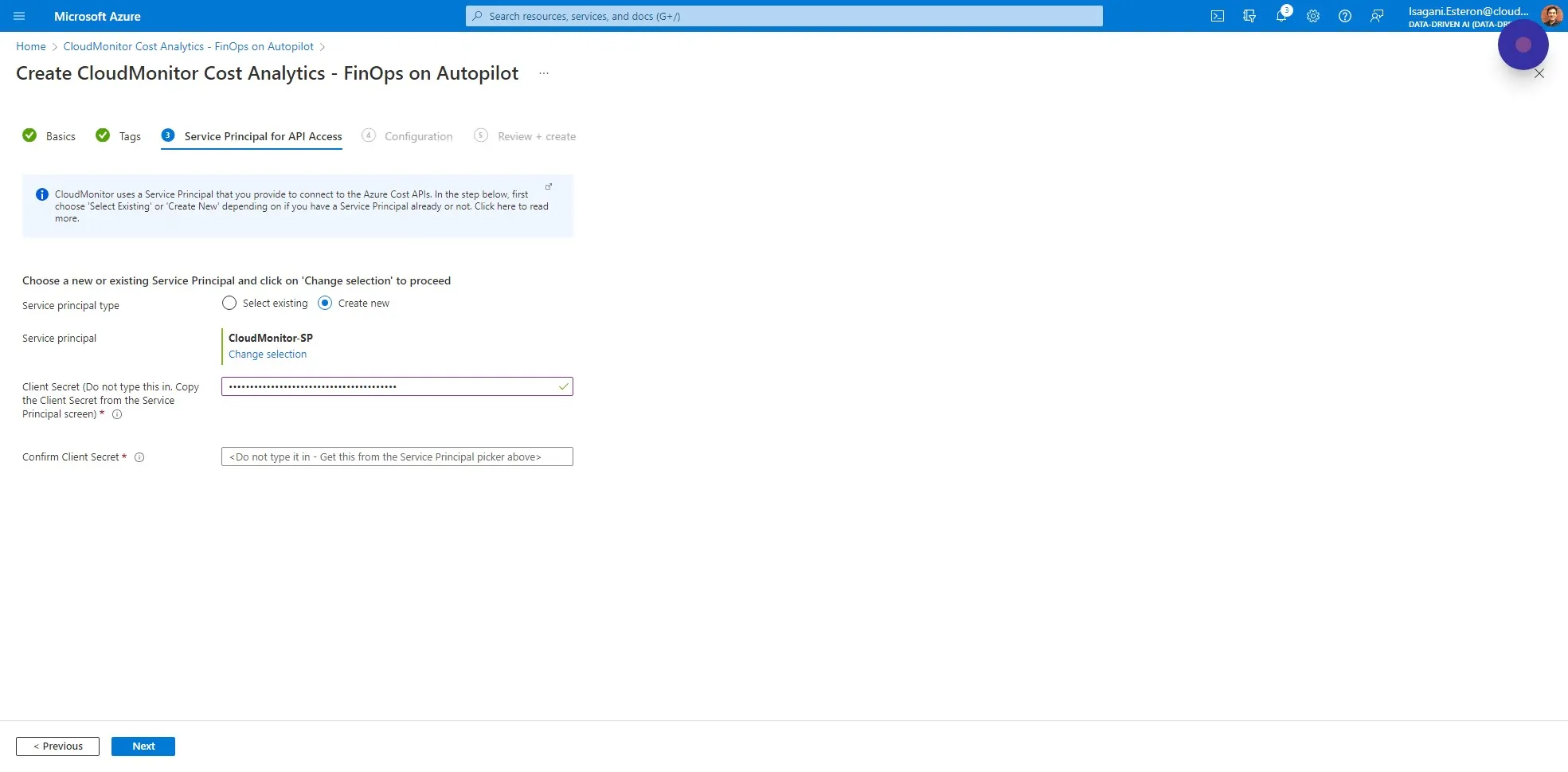

and paste it again below to confirm that it is correct, then click on Next.

and paste it again below to confirm that it is correct, then click on Next

Step 18

The Configuration tab is all about your company configuration.

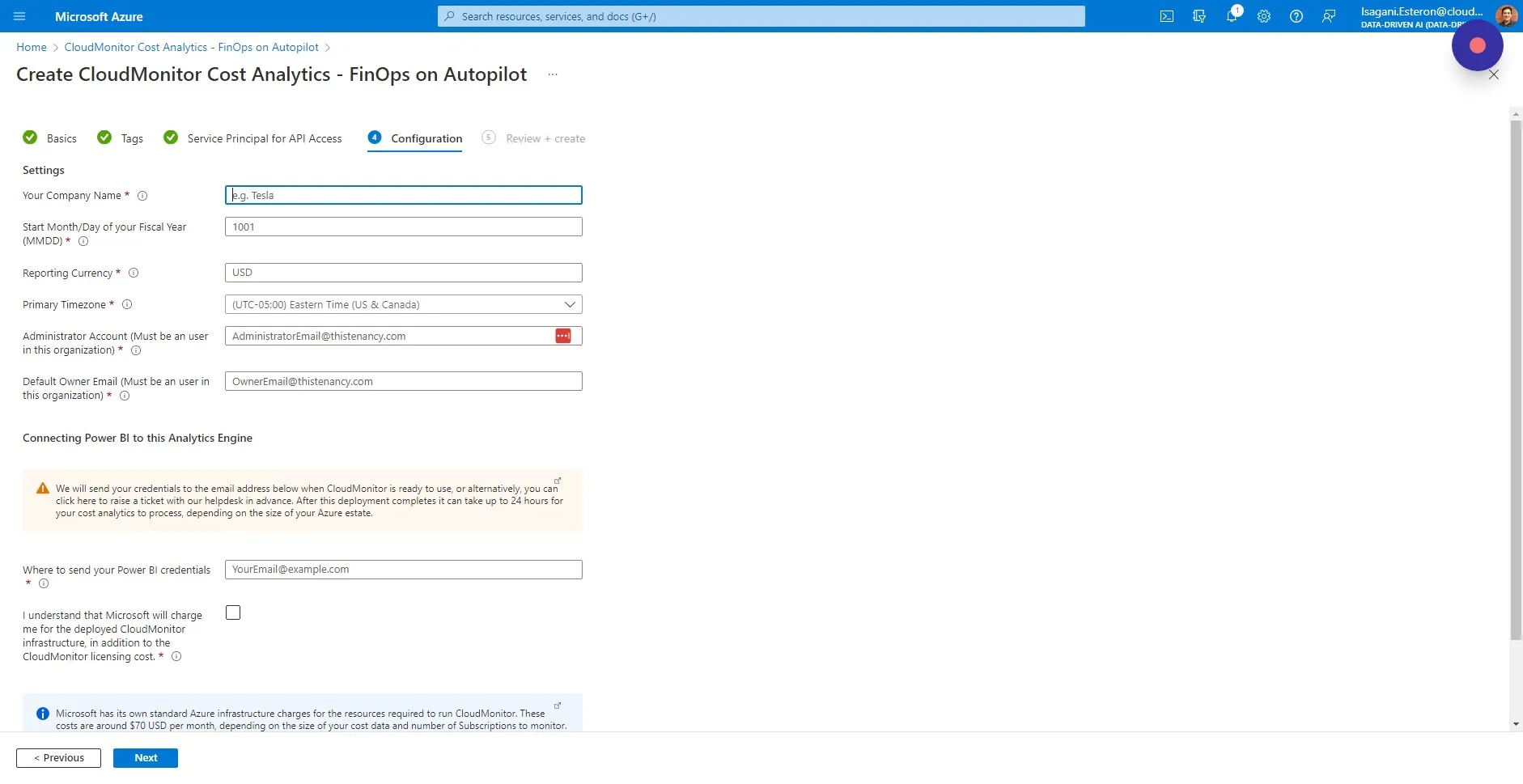

Enter your company name first.

Enter your company name first

Step 19

Fill in the “Start Month/Day of your Fiscal Year (MMDD)” field.

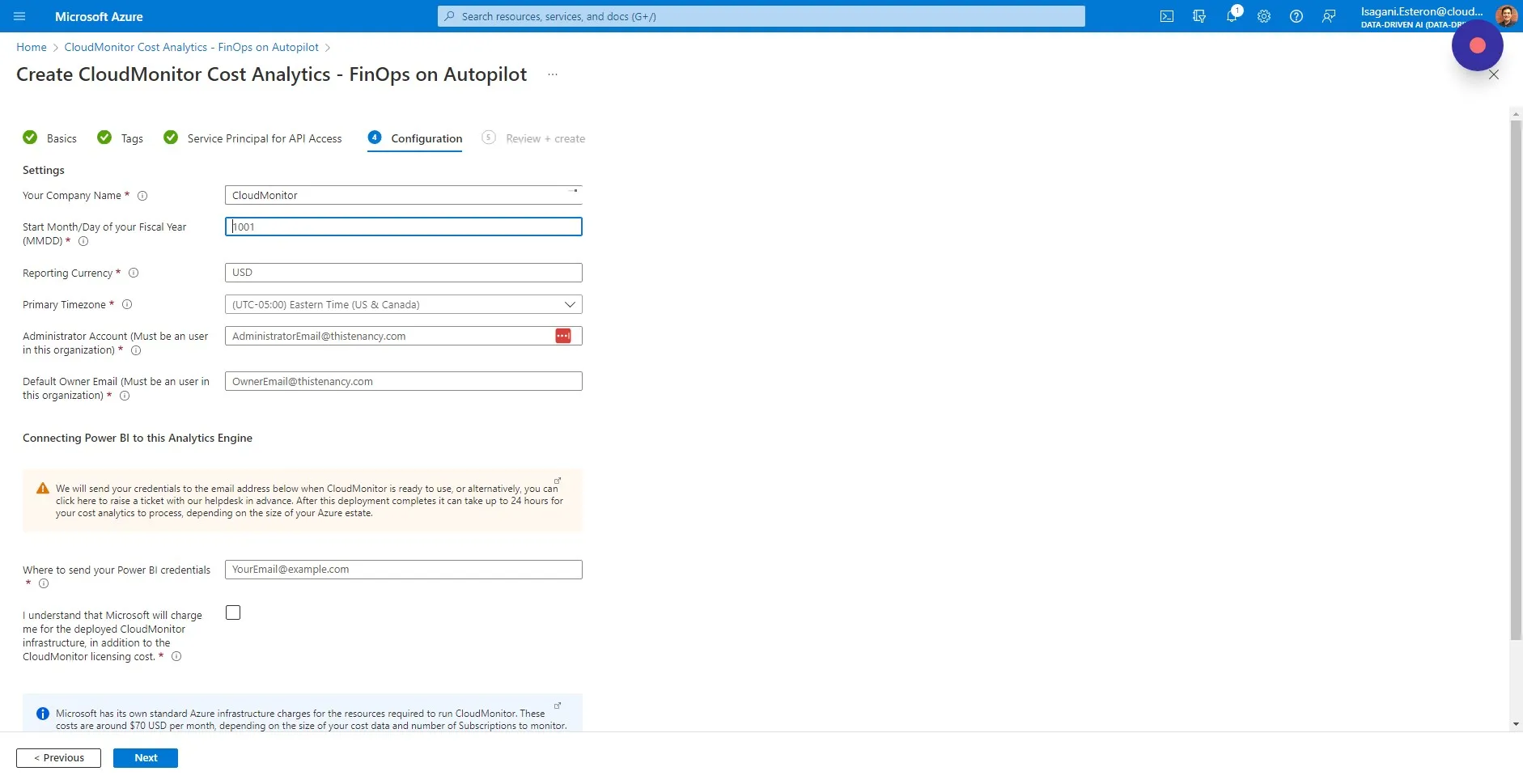

For example, in Australia, the Financial Year is from the 1st of July to the 30th of June, so you would enter 0701 (July the 1st). In the UK, it is from the 6th of April, so you would enter 0406.

For example, in Australia, the Financial Year is from the 1st of July to the 30th of June, so you would enter 0701 (July the 1st)

Step 20

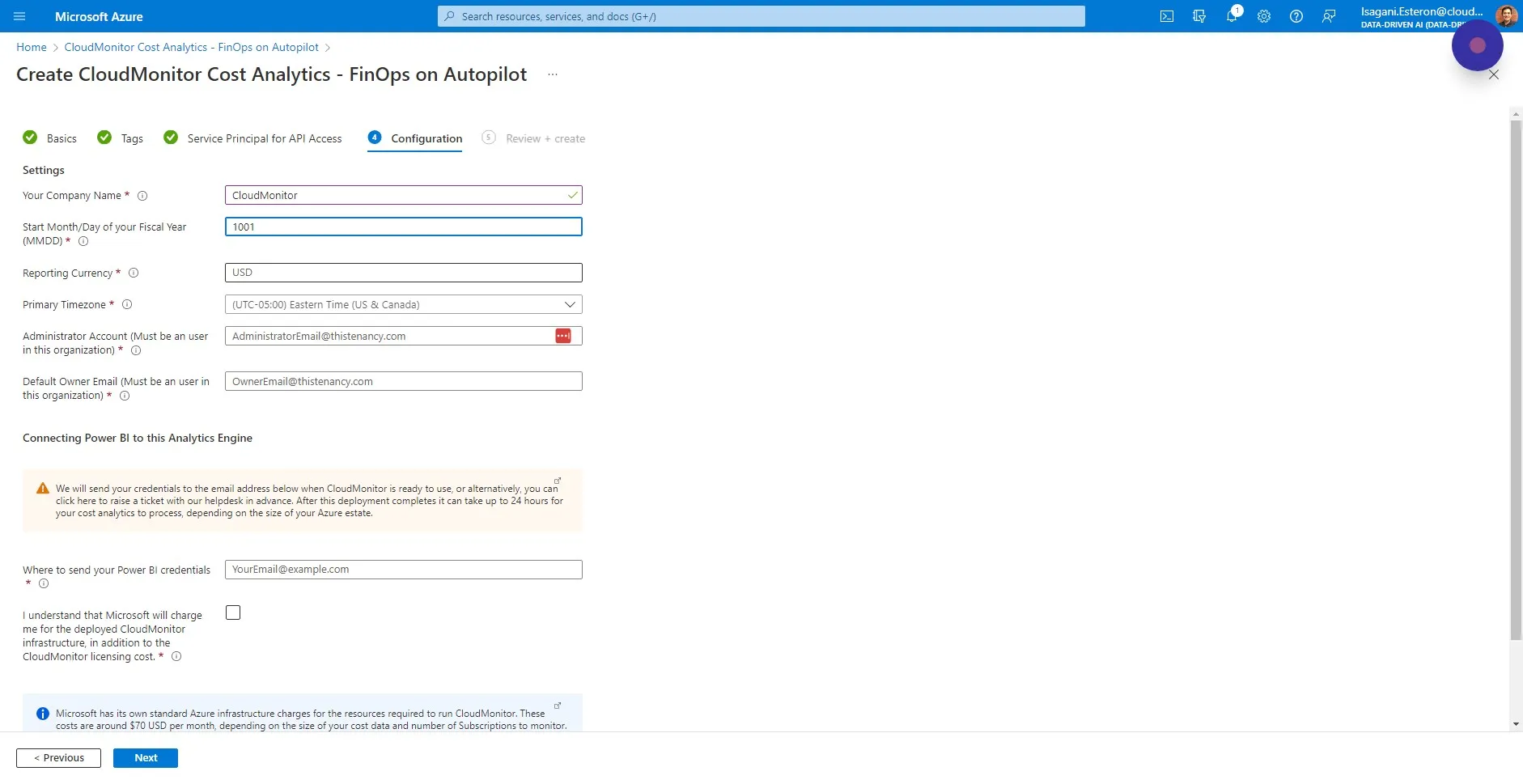

Fill in the “Reporting Currency” field. If your Azure billing is in Indian Rupees, put INR. If it is US dollars, put USD.

Fill in the "Reporting Currency" field. If your Azure billing is in Indian Rupees, put INR. If it is US dollars, put USD

Step 21

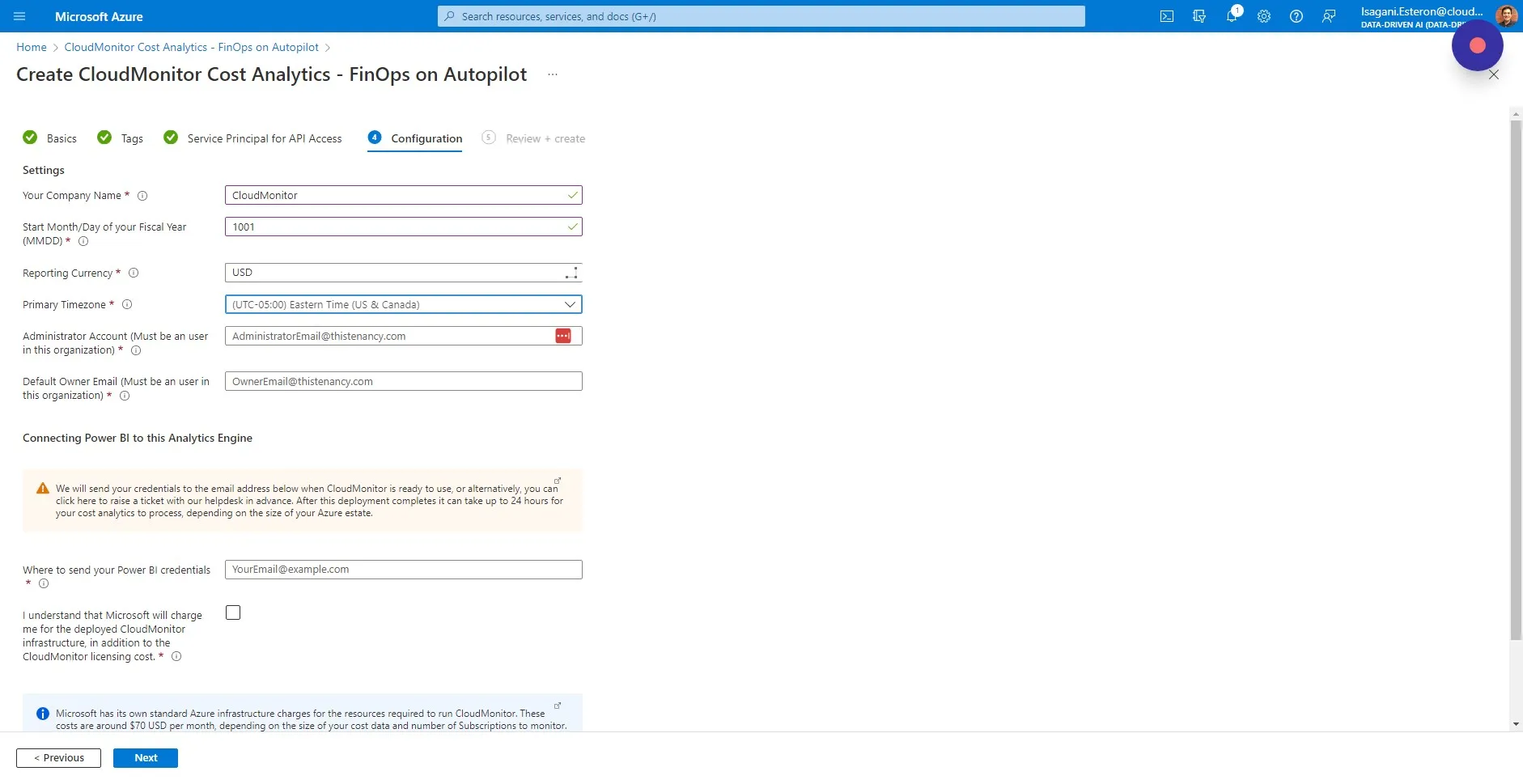

Select your Primary Timezone. This is used for optimizing the performance of CloudMonitor as costs for Azure are refreshed in your timezone/region.

Select your Primary Timezone. This is used for optimizing the performance of CloudMonitor as costs for Azure are refreshed in your…

Step 22

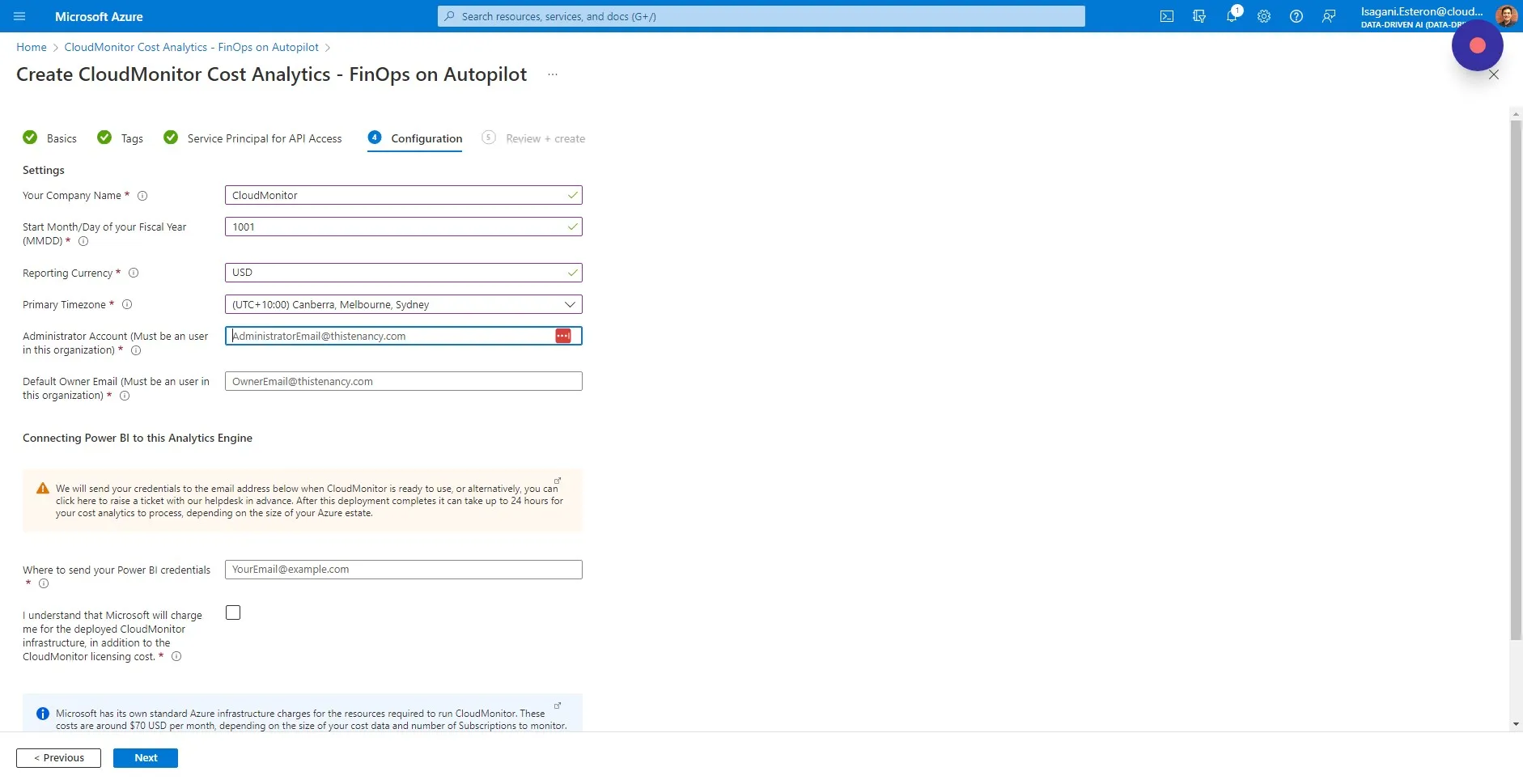

Fill in the “Administrator Account” field. It is important that this user is a valid email in your Azure Active Directory. This account will be the first Administrator in the CloudMonitor Admin App who can invite other users and promote users to be Admins.

Fill in the "Administrator Account" field. It is important that this user is a valid email in your Azure Active Directory

Step 23

Fill in the “Default Owner Email” field. The “Owner” is the user who is responsible for Azure Resources, which is sometimes different from the technical owner/created-by person.

CloudMonitor uses an algorithm to work out who the Owner is, and they can be reassigned in the Admin App. If no Owner is found, the Default Owner is used.

CloudMonitor uses an algorithm to work out who the Owner is, and they can be reassigned in the Admin App

Step 24

Enter the email of the person who will be connecting Power BI to the CloudMonitor Analytics Engine.

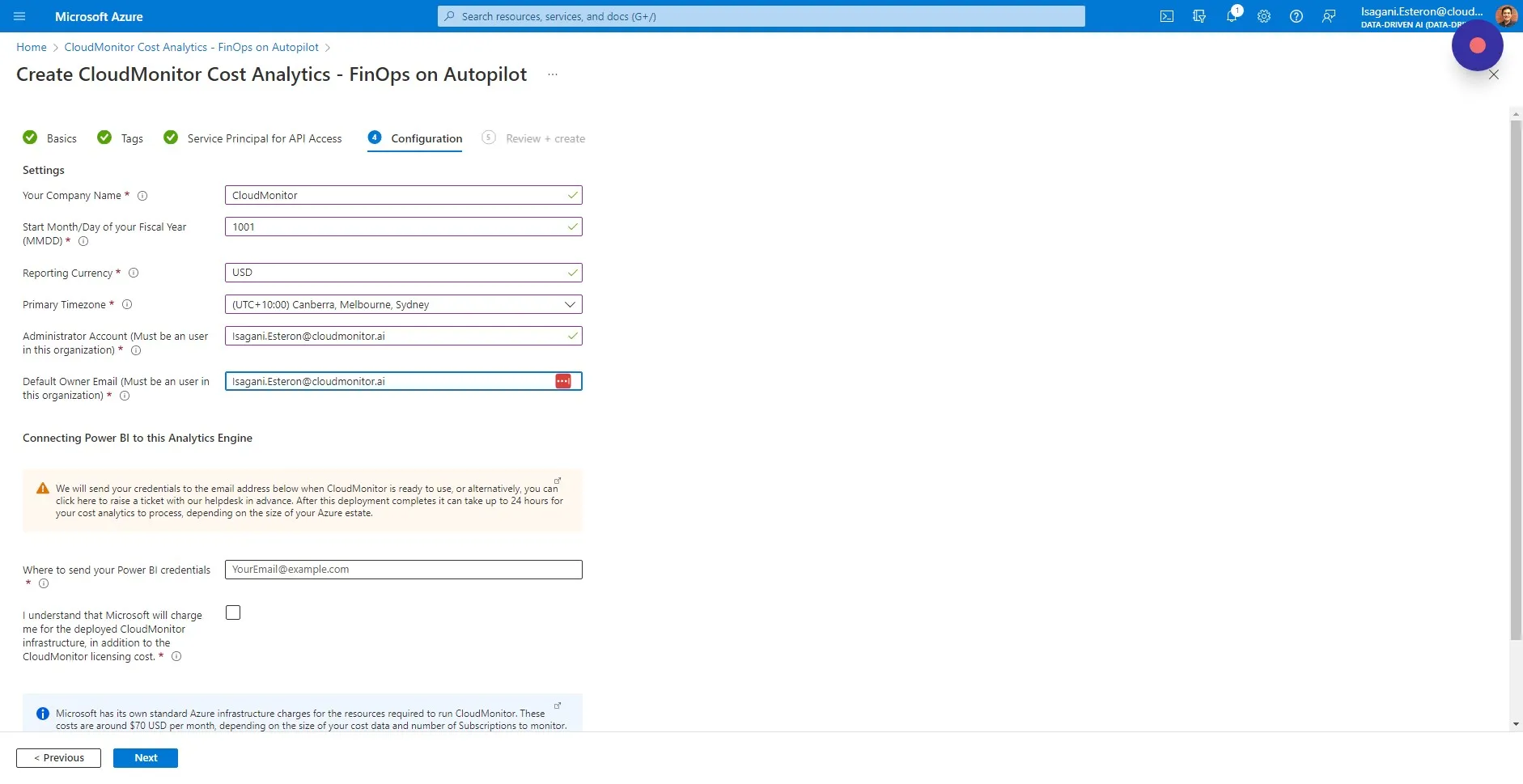

We will send all communications around the technical installation of CloudMonitor to this person. It is not used for anything else.

We will send all communications around the technical installation of CloudMonitor to this person. It is not used for anything else

Step 25

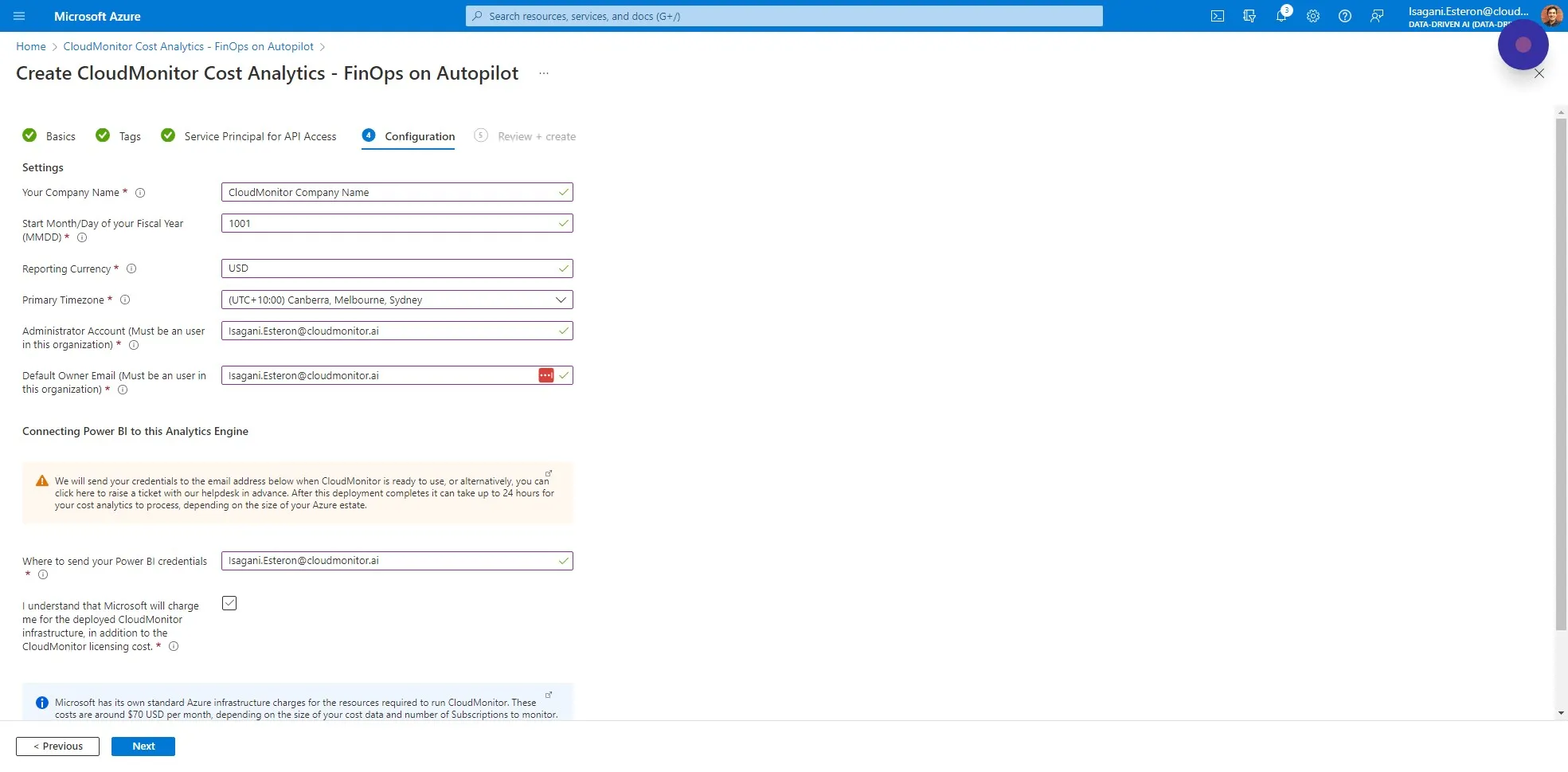

Please ensure that you have read and understand how Microsoft charges for Infrastructure and check this box when you are happy to continue.

Please ensure that you have read and understand how Microsoft charges for Infrastructure and check this box when you are happy to continue

Step 26

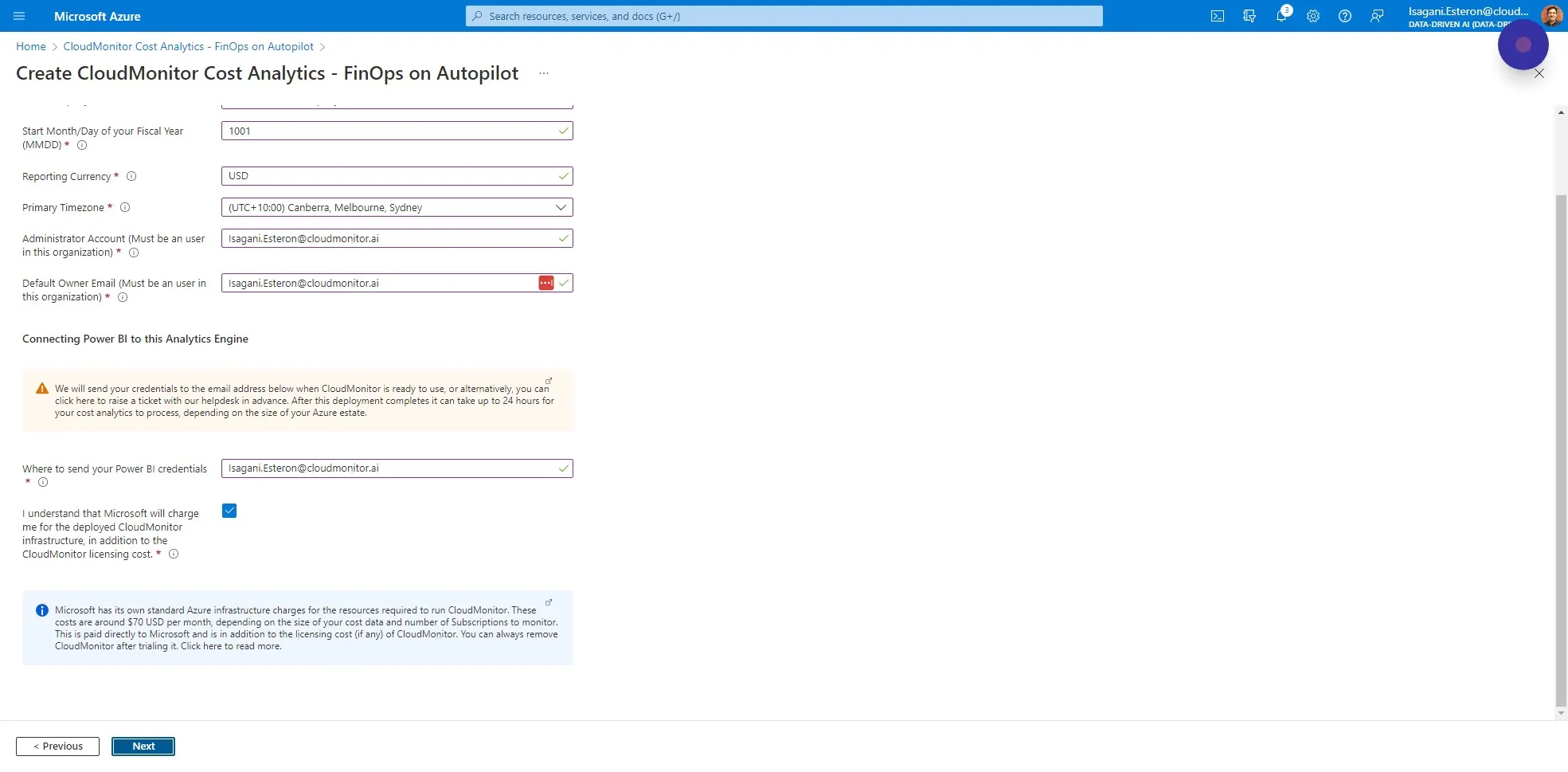

Click on “Next” to proceed to the next tab.

Click on "Next" to proceed to the next tab

Step 27

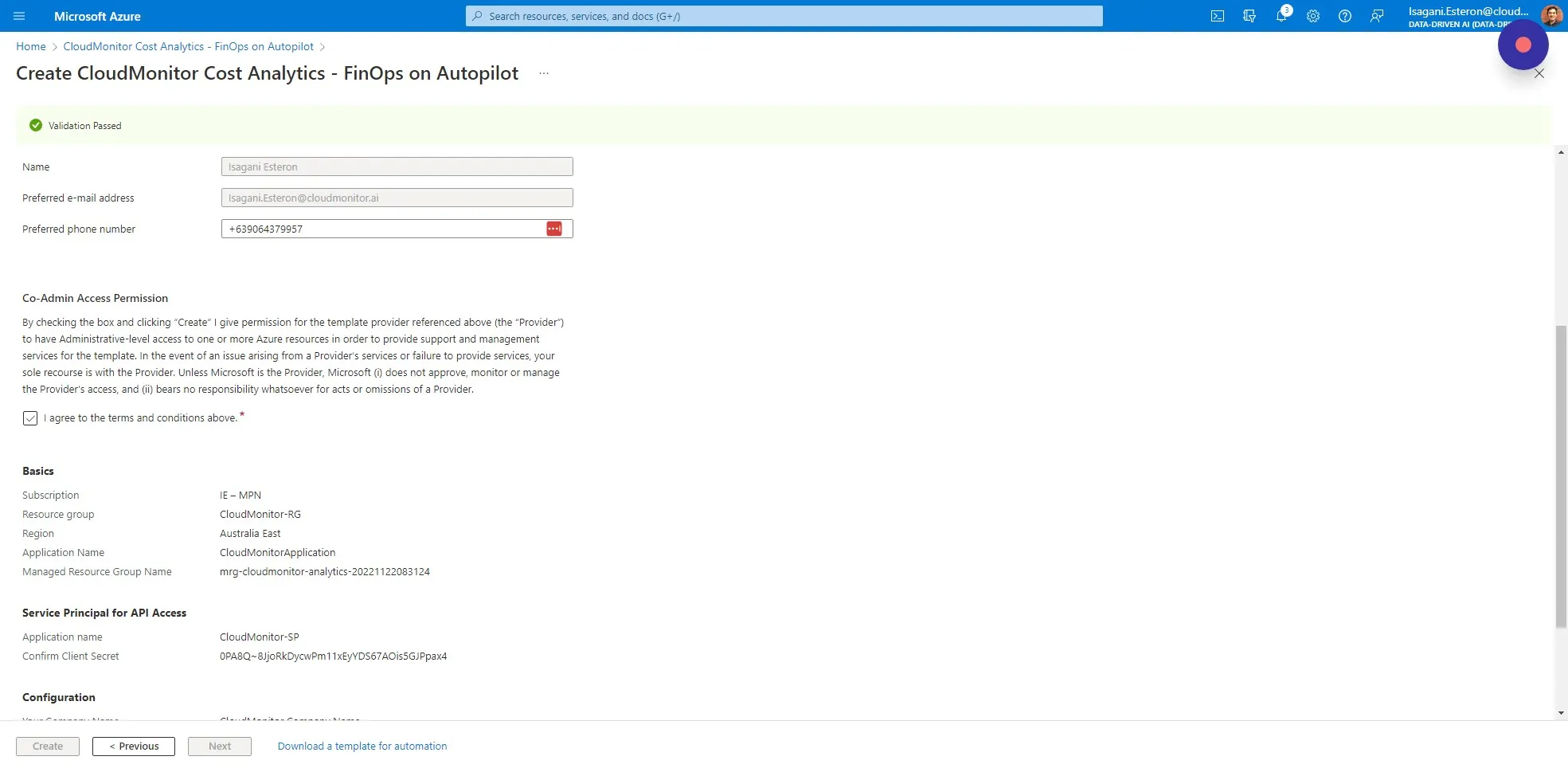

The final tab is a summary of the deployment. Read through the details and check the Terms and Conditions if you would like to proceed.

The final tab is a summary of the deployment. Read through the details and check the Terms and Conditions if you would like to proceed

Step 28

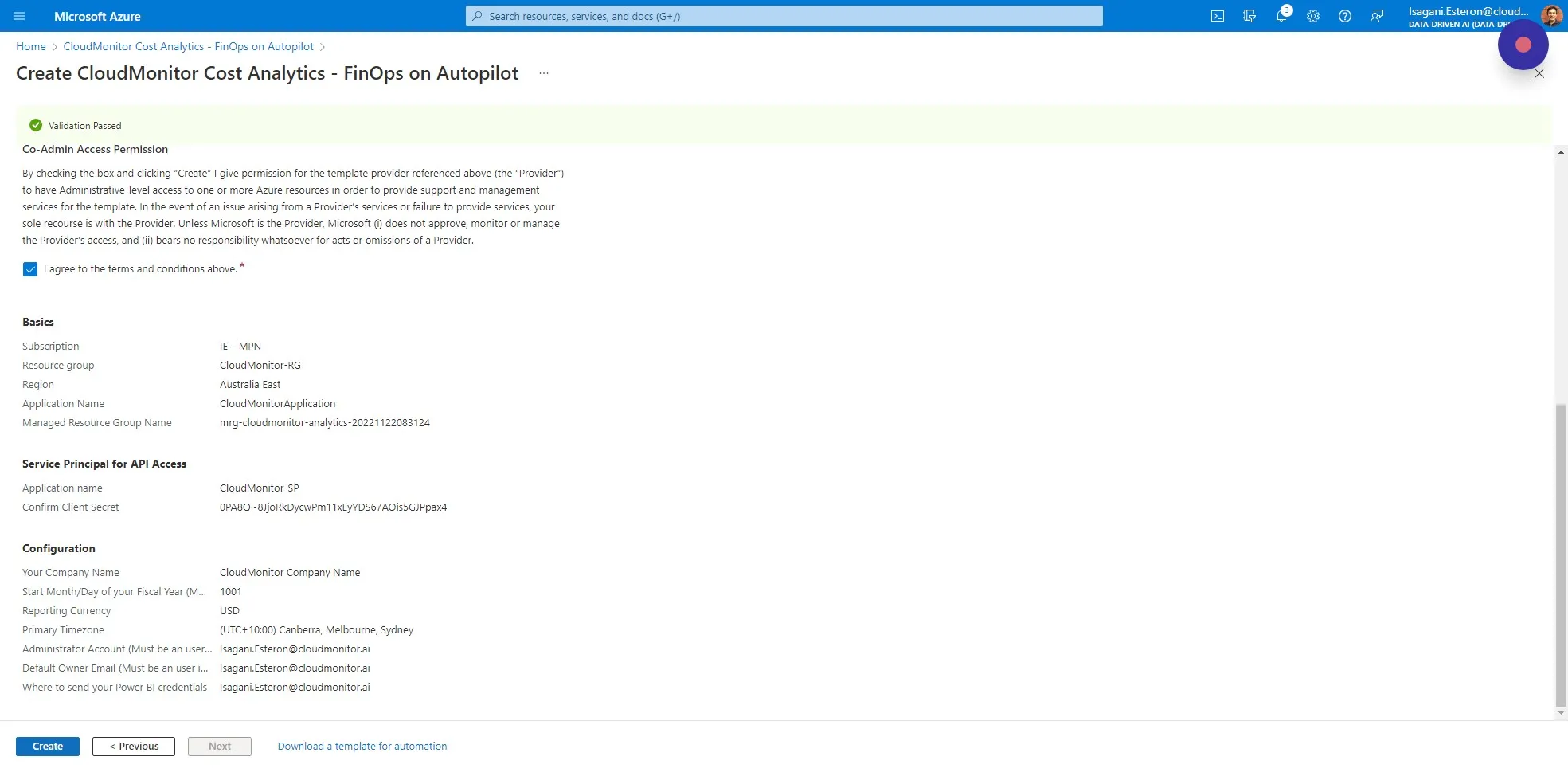

Click “Create” to start the CloudMonitor deployment on Azure.

Click "Create" to start the CloudMonitor deployment on Azure

Step 29

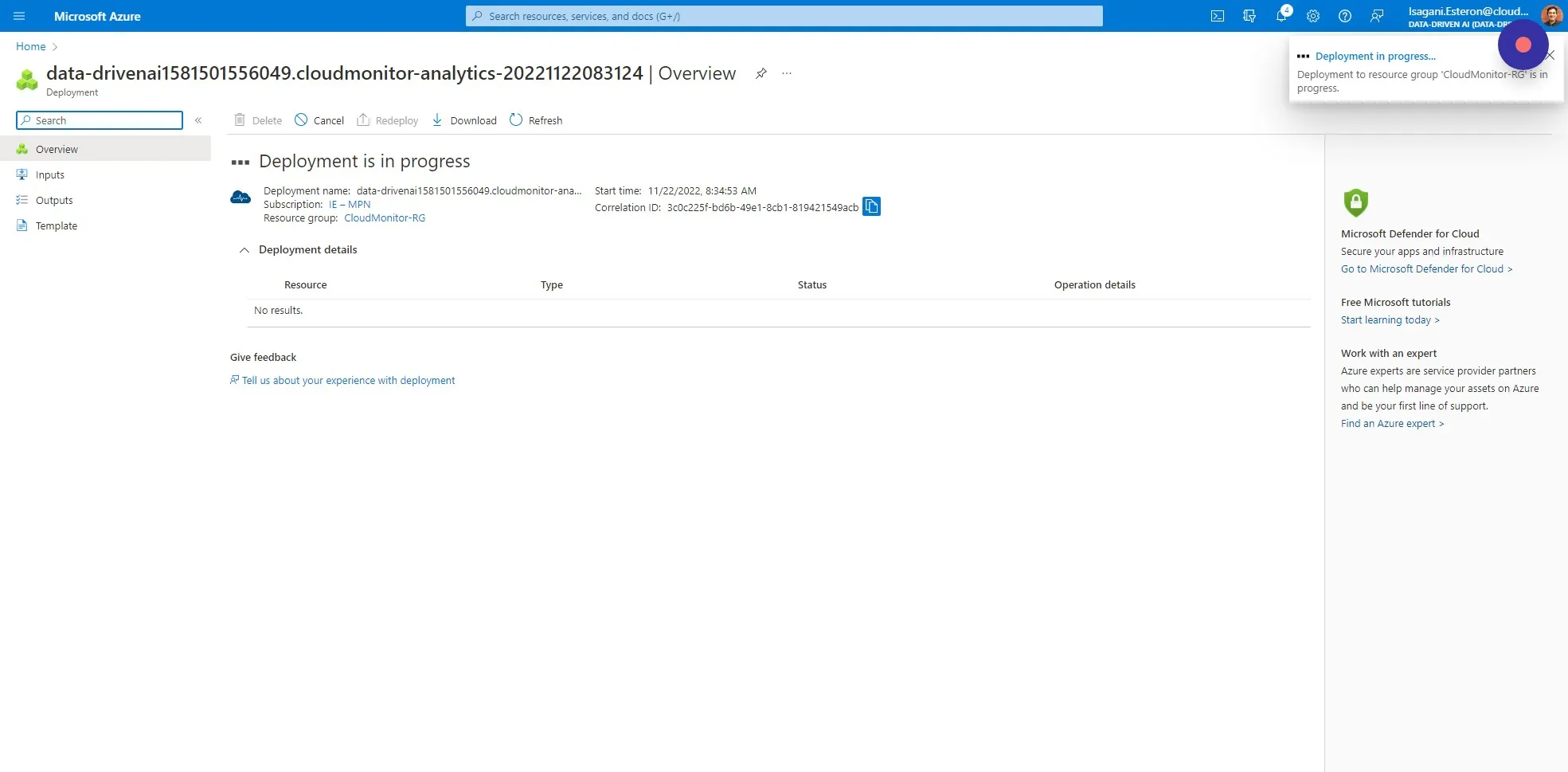

The deployment can take between 10 and 45 minutes. Azure will update you when it is complete.

The deployment can take between 10 and 45 minutes. Azure will update you when it is complete

Step 30

After successful installation of the CloudMonitor Analytics Engine, please move on to Step 2 to configure Azure Synapse. Step 2: Configure Azure Synapse : CloudMonitor Helpdesk
